16/32 Ports Multi Port Station Interface Cards

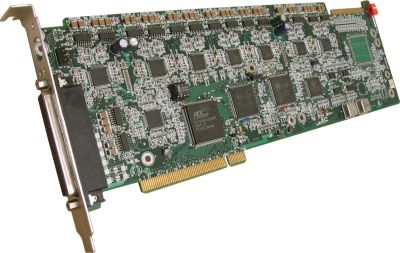

Tricom Multi Port Station Interface CardsTricom Station Interface cards TSI-16, TSI-32 integrates Computer Telephony and Analog telephone devices including touch tone telephones, agent headsets, modems and fax machines.
A conferencing feature enables applications to establish conference calls across DIVA servers and the station devices connected on the TSI-32. An external TSI Power module provides loop current to local telephones through TSI line interface circuit.

The system can handle multiple stations calls simultaneously. Balanced lines ensure voice quality on the telephone up to 2000mts from the host PC.

TSI stations support normal PSTN Phones. Using CTI cards & the TSI - 32 Series cards many CTI applications can be built. TSI cards consist of a baseboard & daughter cards. The base card contains DSP and station interface circuits.

  Features and Benefits:

  Tricom Technologies Connect up to 32 analog telephone devices
  Tricom Technologies Expandable, modular design
  Tricom Technologies Build economical systems
  Tricom Technologies Application program interfaces (APIs)
  Tricom Technologies Programmable cadence
  Tricom Technologies Station status event detection
  Tricom Technologies Programmable channel gain
  Tricom Technologies Supports programmable notification tones
  Tricom Technologies Provides battery feed
  Tricom Technologies Power ringing with automatic ring trip
  Tricom Technologies Call conferencing supports up to 30 conferees
  Tricom Technologies Downloadable front-end impedance
